Dataset Title:	GULF_MAINE - 3111-A
Institution:	Coastal and Marine Hazards and Resources Program, U.S. Geological Survey (Dataset ID: GULF_MAINE_3111_A_cdf)
Range:	longitude = -67.16711 to -67.16711°E, latitude = 43.108 to 43.108°N, time = 1986-06-23T19:37:30Z to 1987-08-02T17:22:30Z
Information:	Summary \| License \| FGDC \| ISO 19115 \| Metadata \| Background \| Subset \| Data Access Form \| Files

To work correctly, this web page requires that JavaScript be enabled in your browser. Please:
1) Enable JavaScript in your browser:
      • Chrome: "Settings : Advanced : Privacy and security : Site Settings : JavaScript"
      • Firefox: (it should be always on!)"
      • Opera: "Settings : Websites : JavaScript"
      • Safari: "Safari : Preferences : Security : Enable JavaScript"
2) Reload this web page.

Graph Type:

X Axis:

Y Axis:

Color:

Constraints

Optional
Constraint #1

Optional
Constraint #2

Server-side Functions

distinct()

Hover here to see a list of options. Click on an option to select it.

Graph Settings

Marker Type:

Size:

Color:

Color Bar:

Continuity:

Scale:

Minimum:

Maximum:

N Sections:

Draw land mask:

Y Axis Minimum:

Maximum:

(Please be patient. It may take a while to get the data.)

Optional:
Then set the File Type: (File Type information)
and

or view the URL:
(Documentation / Bypass this form

)

Click on the map to specify a new center point.

Zoom:

Time range:

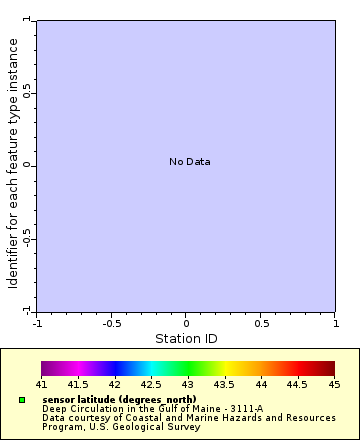

[The graph you specified. Please be patient.]
