Sediment core data from offshore southern Cascadia during field activity 2019-643-FA
By Jenna C. Hill, Nora M. Nieminski, SeanPaul M. La Selle, Janet T. Watt, Daniel S. Brothers, Mary L. McGann, Travis V. Alongi, Gerry A. Hatcher, Brandon M. Nasr, Jennifer A. McKee, and Peter Dal Ferro
https://doi.org/10.5066/P1E8GDZH
Dates
Published: March 27, 2024
Summary
This data release contains sediment core data including core imagery, multi-sensor core logger (MSCL) data, and radiocarbon age data. Sediment cores were collected offshore northern California during U.S. Geological Survey cruise 2019-643-FA aboard the M/V Bold-Horizon. The cores were collected along with geophysical data to evaluate potential hazards (e.g., active fault systems, slope instabilities), and understanding geologic processes on the seabed. The cores were analyzed at the U.S. Geological Survey, Pacific Coastal and Marine Science Center core laboratory to enable a detailed investigation of southern Cascadia's geologic history and ongoing activity. These data and information are intended for science researchers, students, policy makers, and general public
Sampling Data
-
Information on sediment cores collected offshore southern Cascadia, during field activity 2019-643-FA
This dataset presents core information such as core IDs, section numbers, lengths, depth intervals, and locations from sediment cores collected in southern Cascadia (offshore northern California) aboard the M/V Bold Horizon in September-October 2019. An inventory of core section CT, MSCL, and photograph scan files available in this data release are listed here.
Data Files
2019-643-FA_cores.csv - 29.9 KB
Metadata Files
2019-643-FA_cores_metadata.xml - 22.3 KB
2019-643-FA_cores_metadata.txt - 21.6 KB
-
Multi-sensor core logger (MSCL) scans of sediment cores collected offshore southern Cascadia, during field activity 2019-643-FA
This dataset includes multi-sensor core logger (MSCL) data of sediment cores collected in southern Cascadia (offshore northern California) aboard the M/V Bold Horizon in September-October 2019.
Data Files
2019-643-FA_cores_mscl.zip - 394.5 KB
Metadata Files
2019-643-FA_cores_mscl_metadata.xml - 18.9 KB
2019-643-FA_cores_mscl_metadata.txt - 18.4 KB

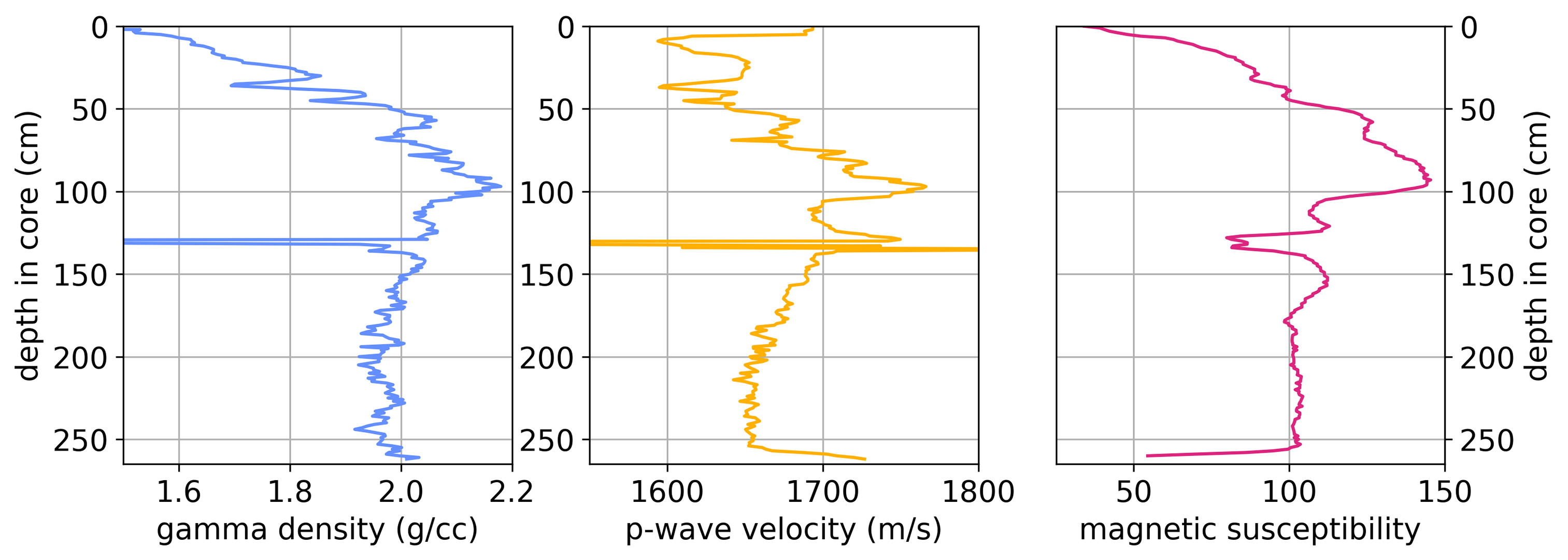

Example from core JPC-30 of MSCL data plotted from .csv file -
Radiocarbon age data from sediment cores collected offshore southern Cascadia, during field activity 2019-643-FA
This dataset presents radiocarbon data from 87 samples from sediment cores collected in southern Cascadia (offshore northern California) aboard the M/V Bold Horizon in September-October 2019. Sample ages were determined by the National Ocean Sciences Accelerator Mass Spectrometry (NOSAMS) facility and the W.M. Keck Carbon Cycle Accelerator Mass Spectrometry (KCCAMS) facility at the University of California, Irvine (UCI).
Data Files
2019-643-FA_cores_radiocarbon.csv - 9.6 KB
Metadata Files
Imagery Data
-
Computed tomography (CT) scans of sediment cores collected offshore southern Cascadia, during field activity 2019-643-FA
This dataset includes computed tomography (CT) scan imagery of sediment cores collected in southern Cascadia (offshore northern California) aboard the M/V Bold Horizon in September-October 2019.
Data Files
2019-643-FA_cores_ct.zip - 4.8 GB
Metadata Files
2019-643-FA_cores_ct_metadata.xml - 16.1 KB
2019-643-FA_cores_ct_metadata.txt - 15.5 KB
Example CT image of a section of core JPC-30. -
Photographs of sediment cores collected offshore southern Cascadia, during field activity 2019-643-FA
This dataset includes photographs (linescan images) of sediment cores collected in southern Cascadia (offshore northern California) aboard the MV Bold Horizon in September-October 2019.
Data Files
2019-643-FA_cores_photos.zip - 33.6 GB
Metadata Files
2019-643-FA_cores_photos_metadata.xml - 16.3 KB
2019-643-FA_cores_photos_metadata.txt - 15.8 KB
Example linescan image of a section of core JPC-30.
Related Field Activities
- 2019-643-FA - View Details
Suggested Citation
Hill, J.C., Nieminski, N.M., La Selle, S.M., Watt, J.W., Brothers, D.S., McGann, M.L., Alongi, T.V., Hatcher, G.A., Nasr, B.M., McKee, J.A., and Dal Ferro, P., 2024, Sediment core data from offshore southern Cascadia during field activity 2019-643-FA: U.S. Geological Survey data release, https://doi.org/10.5066/P1E8GDZH.
