Sediment core data from offshore Cascadia during field activity 2022-653-FA

By Jenna C. Hill, SeanPaul M. La Selle, Janet T. Watt, Nora M. Nieminski, Alicia F. Balster-Gee, Peter Dal Ferro, Jason S. Padgett, Daniel C. Powers, Rachel K. Marcuson, and George R. Snyder

https://doi.org/10.5066/P1VQIJ2Q

Dates

Published: March 26, 2025

Summary

This data release contains sediment core data including X-ray Computed Tomography (CT) scans, photos, and multi-sensor core logger (MSCL) data. Sediment cores were collected along the Cascadia Subduction Zone (offshore northern California, Oregon and Washington) during U.S. Geological Survey cruise 2022-653-FA aboard the M/V Bold-Horizon. The cores were collected to evaluate potential hazards (e.g., active fault systems, slope instabilities, large earthquake recurrence) and understand geologic processes on the seabed. The cores were analyzed at the U.S. Geological Survey, Pacific Coastal and Marine Science Center core laboratory to enable a detailed investigation of Cascadia's geologic history and ongoing activity. These data and information are intended for science researchers, students, policy makers, and general public.

Sampling Data

  • Information on sediment cores collected offshore Cascadia, during field activity 2022-653-FA

    This dataset presents core information such as core IDs, section numbers, lengths, depth intervals, and locations from sediment cores collected in Cascadia (offshore northern California, Oregon, and Washington) aboard the M/V Bold Horizon September 2022. An inventory of core section computed tomography (CT), multi-sensor core logger (MSCL), and photograph scan files available in this data release are listed here.

    Data Files

    2022-653-FA_cores.csv - 3.5 KB - MD5:cb0a51df7b541aad4f94e66d1338099a

    Metadata Files

    2022-653-FA_cores_metadata.xml - 21.5 KB

    2022-653-FA_cores_metadata.txt - 20.8 KB

    Preview of dataset

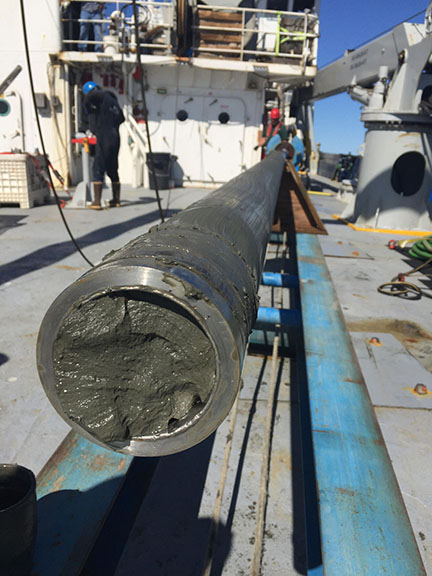

    After recovery, a jumbo piston corer sits on the deck of research vessel Bold Horizon.
  • Multi-sensor core logger (MSCL) scans of sediment cores collected offshore Cascadia, during field activity 2022-653-FA

    This dataset includes multi-sensor core logger (MSCL) data of sediment cores collected in Cascadia (offshore northern California, Washington, and Oregon) aboard the M/V Bold Horizon September 2022.

    Data Files

    2022-653-FA_cores_mscl.zip - 21.1 KB - MD5:aa255e9cf206e45413fe00e5a228a730

    Metadata Files

    2022-653-FA_cores_mscl_metadata.xml - 16.9 KB

    2022-653-FA_cores_mscl_metadata.txt - 16.4 KB

    Preview of dataset

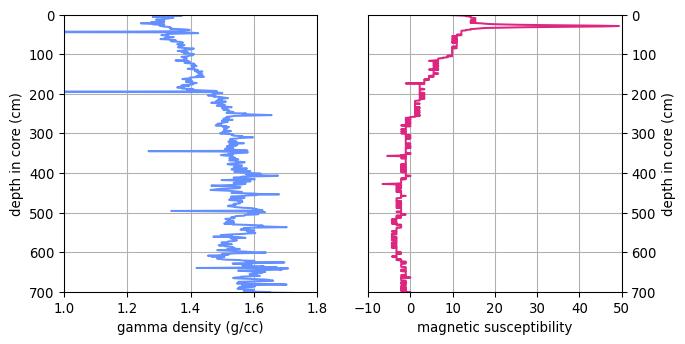

    Example from core JPC-02 of MSCL data plotted from .csv file

Imagery Data

  • Photographs of sediment cores collected offshore Cascadia, during field activity 2022-653-FA

    This dataset includes photographs (line scan images) of sediment cores collected in Cascadia (offshore northern California, Oregon, and Washington) aboard the MV Bold Horizon September 2022.

    Data Files

    2022-653-FA_cores_photos.zip - 4.8 GB - MD5:665894edafd09d6f3236d5ed3e6a2063

    Metadata Files

    2022-653-FA_cores_photos_metadata.xml - 17.3 KB

    2022-653-FA_cores_photos_metadata.txt - 16.7 KB

    Preview of dataset

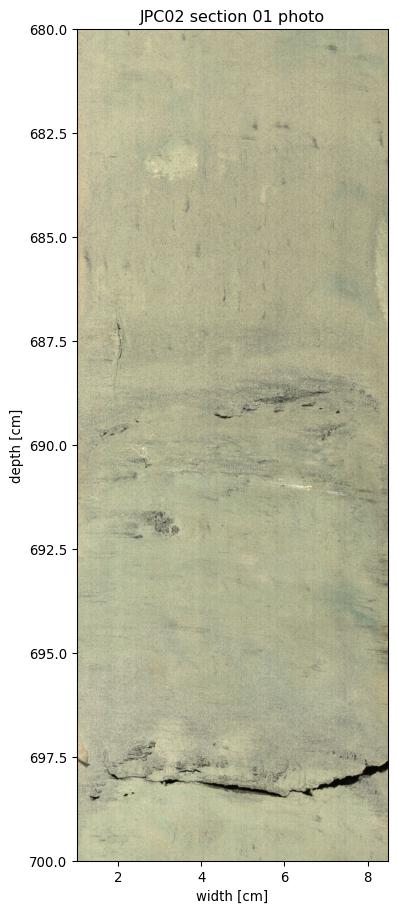

    Example linescan image of a section of core JPC-02.
  • Computed tomography (CT) scans of sediment cores collected offshore Cascadia, during field activity 2022-653-FA

    This dataset includes computed tomography (CT) scan imagery of sediment cores collected in Cascadia (offshore northern California, Oregon, and Washington) aboard the M/V Bold Horizon September 2022.

    Data Files

    2022-653-FA_cores_ct.zip - 706.9 MB - MD5:6a43c789d09b3ef10c71c75bf319ae7f

    Metadata Files

    2022-653-FA_cores_ct_metadata.xml - 17.1 KB

    2022-653-FA_cores_ct_metadata.txt - 16.5 KB

    Preview of dataset

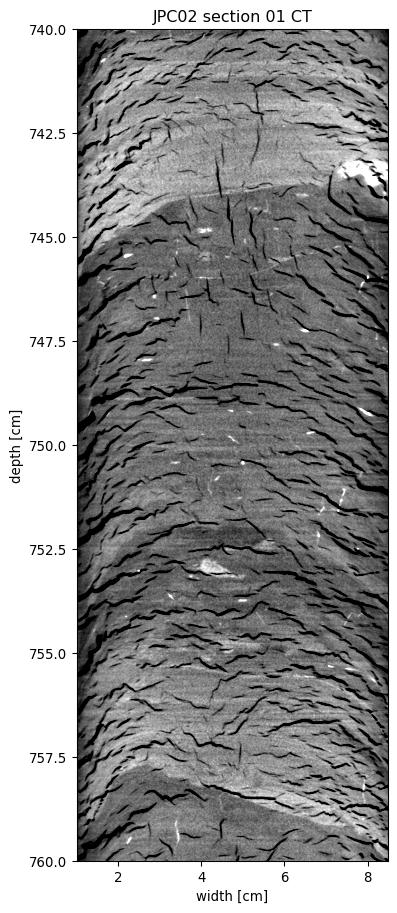

    Example CT image of a section of core JPC-02.

Supplemental Files

  • 2022-653-FA_example_plots.pdf - 9.0 MB
    This supplemental file provides an example of plots derived from the sediment core data contained in this data release.

    • Related Field Activities

    • 2022-653-FA - View Details

      • Suggested Citation

      Hill, J.C., La Selle, S.M., Watt, J.W., Nieminski, N.M., Balster-Gee, A.F., Dal Ferro, P., Padgett, J.S., Powers, D.C., Marcuson, R.K., and Snyder, G.R., 2025, Sediment core data from offshore Cascadia during field activity 2022-653-FA: U.S. Geological Survey data release, https://doi.org/10.5066/P1VQIJ2Q.

Overview Map
